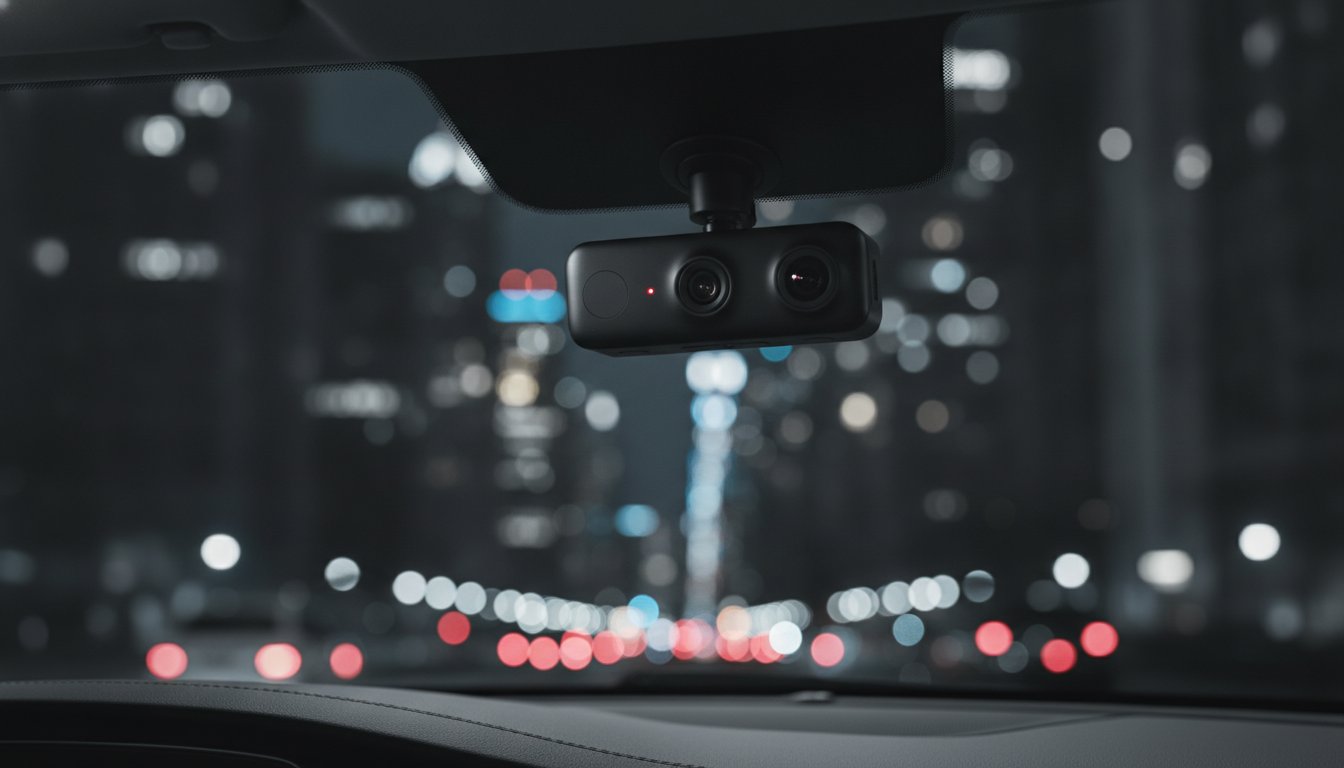

Dash Cam with Inside Cabin View: Technical Specifications and Reference Guide

Effective interior vehicle monitoring requires more than a standard lens; it demands a precise integration of 940nm infrared wavelengths and high-bitrate multi-channel processing to ensure clarity in total darkness. Achieving usable footage from a dash cam with inside cabin view often fails due to insufficient IR illumination or low-quality CMOS sensors that produce digital noise in low-light environments. This technical reference provides a comprehensive breakdown of the hardware requirements necessary for reliable interior recording, covering infrared LED arrays, wide-angle optics, and 3-channel data management protocols.

You will learn the exact specifications needed to resolve common issues like storage bottlenecks and poor image quality. This guide identifies the necessary infrared specs for cabin view and explains how 3-channel systems manage data and resolution across multiple streams. The following sections detail the hardware configurations found in professional systems like the Guardian 3-Channel 4K Dash Cam, focusing on sensor resolution, memory card write speeds, and legal compliance for windshield mounting and audio recording. We provide specific data points on state regulations, such as California's 2026 vehicle code updates, to ensure your hardware deployment remains within legal parameters.

Technical Overview of Dash Cams with Inside Cabin View

A dash cam with inside cabin view is a specialized digital recording system engineered for comprehensive interior vehicle surveillance. Unlike standard forward-facing units, these systems utilize secondary or tertiary lenses to capture the passenger compartment environment. Modern Dashboard camera technology has evolved to support multi-channel configurations. These configurations allow for simultaneous front-road, rear-road, and interior-cabin monitoring. These devices serve as a critical data source for liability protection, insurance claim verification, and incident documentation. They're essential for operators requiring a 360-degree record of both external and internal events.

Hardware configurations typically fall into two distinct categories. Integrated 3-channel units, such as the Guardian 3-Channel 4K Dash Cam, house the front and interior lenses within a single chassis. This design reduces wiring complexity and minimizes the mounting footprint on the windshield. Conversely, modular configurations utilize a primary front-facing unit with a separate, plug-in interior camera module connected via USB or proprietary data cables. Integrated units are generally preferred for fleet uniformity and streamlined installation. Modular systems offer flexibility in lens placement for non-standard vehicle cabins.

The Role of Interior Monitoring in Vehicle Security

Interior monitoring provides essential documentation for rideshare drivers and commercial fleet operators. High-definition cabin footage captures passenger interactions, providing objective evidence during dispute resolutions or insurance investigations. In commercial fleet management, these systems monitor driver behavior. This ensures adherence to safety protocols and fatigue management standards. During stationary periods, interior lenses function as part of a sentry or parking mode. They record cabin activity or unauthorized entry attempts to enhance overall vehicle security. It's a proactive measure against internal theft and vandalism.

Key Components of Cabin-Facing Lenses

A dash cam with inside cabin view requires specific optical engineering to function effectively in confined spaces. Key components include:

• CMOS Sensors: High-sensitivity image sensors optimized for short-range focal depths and low-light performance.
• Aperture: Large aperture sizes, typically f/1.8 or f/2.0, maximize light intake for interior clarity.
• Field of View (FOV): Wide-angle geometries ranging from 120° to 140° ensure total cabin coverage from the driver-side window to the passenger-side window.
• Fixed-Focus Optics: Lenses are factory-set to maintain sharp focus on occupants within a 0.5 to 3-meter range.

The primary function of these systems is the mitigation of legal and financial risk. By maintaining a continuous, time-stamped record of cabin activity, operators can disprove false claims and verify driver performance. High-bitrate recording ensures that fine details, such as facial features and hand movements, remain legible during playback. This technical density is what distinguishes professional-grade interior monitors from standard consumer cameras.

Infrared (IR) Technology and Night Vision Specifications

Effective interior monitoring in total darkness relies on active infrared illumination. A professional dash cam with inside cabin view typically integrates an array of 4 to 6 IR LED sensors positioned around the lens perimeter. These sensors emit light in the infrared spectrum, which the CMOS sensor detects while remaining invisible to the human eye. This hardware configuration ensures that the camera records clear footage without requiring ambient light from the dashboard or streetlights. It's a standard requirement for high-security applications where passenger visibility is mandatory regardless of external lux levels.

The transition between daylight and night modes is managed by an automatic IR-cut filter. During daylight, this filter blocks infrared light to prevent color distortion. When light levels drop below a specific lux threshold, the filter retracts, and the IR LEDs activate. This process results in monochrome, or grayscale, output. Grayscale is used because infrared light doesn't provide color data that human eyes recognize. It prioritizes contrast and sharpness over chromatic accuracy, which is essential for identifying occupants in pitch-black conditions. This technical trade-off ensures that facial features and movements remain legible in the absence of visible light.

Understanding IR Wavelengths for Cabin Use

Standard IR illumination often uses the 850nm wavelength, which emits a faint red glow visible to the driver. In a dash cam with inside cabin view, manufacturers prioritize 940nm to 950nm IR wavelengths. These wavelengths are completely invisible to the human eye. This prevents red-dot distraction and ensures the driver's night vision isn't compromised by internal light sources. High-quality 940nm LEDs provide deep penetration into the cabin, allowing for facial recognition even in the rear seats of a large SUV or van.

Sensor Sensitivity and Low-Light Performance

Hardware efficiency depends on the synergy between the IR array and the image sensor's High Dynamic Range (HDR) capabilities. Interior cameras face a unique challenge: balancing the dark cabin with bright external light sources like passing headlights or neon signs. HDR processing prevents blown-out images by merging multiple exposures into a single frame. This maintains detail in both the shadows of the cabin and the highlights seen through the side windows. For those seeking reliable hardware, the Guardian 3-Channel 4K Dash Cam utilizes these exact IR standards for consistent 1080p FHD interior resolution.

Technical requirements for interior night vision include a minimum resolution of 1080p to ensure that digital noise doesn't obscure critical details. Low-quality sensors often struggle with grain in IR mode, which can render footage useless for insurance purposes. By utilizing high-sensitivity sensors with large pixel sizes, professional systems maintain a high signal-to-noise ratio. This technical precision ensures that every passenger interaction is documented with clarity, regardless of external lighting conditions or time of day.

3-Channel Architecture: Front, Rear, and Interior Integration

Current 3-channel hardware standards require a high-performance System on a Chip (SoC) to process three concurrent video streams. A dash cam with inside cabin view integrated into a 3-channel setup typically manages a 4K front-facing stream (3840 x 2160), a 1080p rear stream (1920 x 1080), and a 1080p interior stream (1920 x 1080). This configuration places a significant computational load on the processor, necessitating efficient data prioritization. Systems prioritize the front lens for maximum detail preservation, such as license plate legibility, while maintaining sufficient bitrate for the interior lens to ensure clear facial recognition through infrared sensors.

Bitrate allocation is a critical metric for multi-channel stability. A total system bandwidth of 60 to 100 Mbps is common, with the front channel receiving approximately 50 to 60 percent of the total allocation. The remaining bandwidth is split between the rear and interior channels. Insufficient bitrate in the interior channel leads to blocky artifacts and digital noise, particularly during high-motion events. File management protocols involve the simultaneous creation of three distinct video files for every recording interval. These files are typically time-synced and stored in separate folders on the microSD card to facilitate efficient retrieval and multi-perspective playback in desktop viewers.

Multi-Channel Video Compression Standards

The transition from H.264 to H.265 (High Efficiency Video Coding) is essential for 3-channel architectures. H.265 provides approximately 40 percent to 50 percent better data compression than H.264 at the same visual quality level. This efficiency is vital for managing the massive data footprint of 4K and dual 1080p streams. Without H.265, storage cards would reach capacity twice as fast, leading to more frequent loop-recording overwrites. Modern compression ensures that fine details, including cabin occupants and external road signs, remain sharp even at lower bitrates. Most dash cam with inside cabin view systems now utilize H.265 to maintain compatibility with high-resolution mobile app streaming and modern video players.

Thermal Management in High-Performance Dash Cams

Processing three simultaneous video streams generates substantial internal heat. High-end systems utilize supercapacitors instead of traditional lithium-ion batteries to enhance thermal stability. Supercapacitors are rated for higher operating temperature ranges, often from -20°C to 70°C, preventing system failure in extreme climates. Hardware designs include dedicated ventilation ports and internal heat sinks to dissipate heat from the SoC. Reliable thermal management prevents processor throttling, which can cause frame drops or system reboots during prolonged recording sessions. This level of hardware durability is standard in professional configurations like the Guardian 3-Channel 4K Dash Cam, ensuring continuous operation in demanding environments.

Hardware Requirements and Installation Logistics

Deploying a 3-channel system requires higher electrical and data bandwidth than standard single-lens units. A dash cam with inside cabin view increases total power consumption to approximately 2A to 3A at 5V, depending on IR LED activation. Integrated systems generally utilize USB-C or proprietary multi-pin connectors to handle the increased data throughput between the main processor and the interior sensor. Mounting positions must be selected to maximize the 140-degree interior FOV, typically placing the unit behind the rearview mirror to capture both the driver and passenger side windows without obstructing the forward roadway.

Storage and SD Card Endurance

High-resolution recording generates massive data volumes. A 4K front, 1080p rear, and 1080p interior configuration consumes roughly 25GB to 35GB per hour of footage. This demand necessitates the use of High Endurance microSD cards with U3 or V30 speed ratings. These cards are specifically designed for continuous write cycles and high-temperature operation. Standard cards often fail under the persistent load of three simultaneous streams, leading to frame skips or total file corruption. High endurance cards provide the necessary longevity for professional loop recording and don't suffer the same wear-out rates as consumer-grade flash media.

Powering a 3-Channel System

Continuous operation requires a stable power source. For laboratory or in-vehicle testing of multiple units, a power strip 6 outlet 6 usb provides the necessary port density to manage several 5V/2.4A connections. For permanent vehicle installation, a hardwire kit is mandatory for 24/7 parking surveillance. These kits connect directly to the vehicle fuse box and include voltage-cutoff modules. These modules monitor the car battery and terminate power if voltage drops below a preset threshold, typically 11.8V or 12.2V, to prevent battery drain. This ensures the dash cam with inside cabin view remains active during parked sessions without compromising vehicle starting capability.

USB-C connectivity has become the industry standard for modern 3-channel hardware. It offers superior power delivery and higher data transfer rates compared to legacy micro-USB formats. Proprietary analog connections are sometimes used for modular interior cameras to reduce interference, but digital USB-C interfaces remain the most versatile for high-bitrate 1080p cabin streams. For those ready to upgrade their vehicle security, you can purchase the Guardian 3-Channel 4K Dash Cam to ensure professional-grade hardware reliability and streamlined installation.

Guardian 3-Channel 4K Dash Cam: Integrated Cabin Security

The Guardian 3-Channel 4K Dash Cam represents a unified hardware solution for professional vehicle monitoring. This system integrates a 3840 x 2160p front-facing sensor with a 1920 x 1080p interior lens within a single chassis. It functions as a high-performance dash cam with inside cabin view, utilizing a 170-degree front Field of View (FOV) and a 140-degree interior FOV to eliminate blind spots. An integrated infrared LED array provides active illumination for the cabin, ensuring clear monochrome recording in zero-light environments. WiFi connectivity allows for immediate file management and firmware updates via mobile applications, streamlining the retrieval of incident data.

Integrated vs. Modular Design

The integrated architecture of the Guardian system offers distinct advantages over modular configurations. By housing the front and interior lenses in one unit, the design reduces windshield clutter and simplifies cable management. A single power source drives all three channels, decreasing the risk of connector failure associated with secondary plug-in modules. Unified hardware processing ensures that the SoC manages the Front 4K and Interior 1080p streams with synchronized timestamps and frame rates. This centralized approach improves system reliability during high-vibration events and prolonged recording sessions. It's a more stable configuration for high-volume rideshare or fleet operations.

Comparative Advantages in 2026

This hardware utilizes advanced H.265 (HEVC) compression to optimize storage efficiency for multi-channel data. Compared to older H.264 standards, H.265 reduces file sizes by approximately 50 percent without compromising image clarity or detail. The unit's thermal design is optimized for national US climate variations, maintaining operational stability in high-temperature environments. While this system provides comprehensive mobile security, some operators utilize a 1080p wireless mini security camera for secondary vehicle monitoring or blind-spot surveillance in cargo areas. The Guardian unit remains the primary hub for road-facing and cabin-facing documentation.

The combination of 4K resolution and integrated IR night vision makes this dash cam with inside cabin view a standard-setting tool for liability protection. High-bitrate recording ensures that license plates and facial features are captured with legal-grade precision. The hardware's ability to maintain these specifications across three simultaneous channels provides a comprehensive evidentiary record for insurance and legal proceedings. Its utilitarian design focuses entirely on data integrity and ease of access, meeting the rigorous requirements of modern professional drivers.

Optimizing Interior Vehicle Surveillance Protocols

Reliable interior vehicle monitoring depends on the specific integration of high-wavelength infrared arrays and high-bitrate processing architectures. Technical alignment between 940nm LED sensors and multi-channel data management ensures clear evidence collection in zero-light environments. Implementing a dash cam with inside cabin view provides the necessary documentation for insurance verification and rideshare liability protection. Success in high-performance monitoring requires hardware capable of sustained 3-channel operation without thermal throttling or data corruption.

System stability is achieved through the use of high-endurance storage media and efficient video codecs that manage the massive throughput of simultaneous streams. Professional-grade hardware configurations prioritize the front-facing lens while maintaining sharp interior resolution for passenger identification. You can View Technical Specifications for the Guardian 3-Channel 4K Dash Cam to evaluate its 4K UHD Front Resolution, Integrated 1080p IR Cabin Lens, and H.265 High-Efficiency Compression. Selecting the correct hardware ensures long-term operational reliability and comprehensive security coverage for every trip.

Frequently Asked Questions

What is the best resolution for an interior cabin dash cam?

1080p (1920 x 1080) resolution is the professional standard for an interior cabin lens. This resolution provides sufficient pixel density for facial recognition within the 0.5 to 3-meter focal range. While 4K is prioritized for the front-facing lens, 1080p manages data bandwidth effectively without compromising evidentiary detail. It ensures that interior footage remains clear while preventing the microSD card from reaching capacity prematurely.

Does a dash cam with inside cabin view record audio by default?

Most systems record audio by default via an integrated internal microphone. Users can typically disable this feature through the device settings menu or a dedicated physical toggle button. In several US states, including California and Florida, all-party consent is legally required for audio recording. Drivers should check local regulations and consider using window decals to inform passengers that a dash cam with inside cabin view is active.

Can I use a standard microSD card in a 3-channel 4K dash cam?

Standard microSD cards aren't recommended for 3-channel 4K systems. These high-bitrate devices require High Endurance cards with U3 or V30 speed ratings to handle simultaneous write cycles from three video streams. Standard flash media often suffers from controller failure or data corruption due to the intense heat and constant loop-recording cycles. Using a V30-rated card ensures a minimum sustained write speed of 30MB/s, which is necessary for stable 4K and dual 1080p recording.

How does infrared night vision work in a car cabin?

Infrared night vision utilizes 940nm LED arrays to flood the vehicle interior with light that's invisible to the human eye. The camera's CMOS sensor is sensitive to this infrared spectrum, allowing it to capture detailed images in 0-lux conditions. When the IR-cut filter retracts in low light, the system produces monochrome footage with high contrast. This hardware configuration enables the device to document cabin activity without creating a visual distraction for the driver.

Will an interior dash cam record through the side windows?

An interior lens with a 140-degree field of view (FOV) captures the passenger compartment and the area immediately visible through the side windows. This wide-angle geometry ensures that interactions at the driver-side and passenger-side windows are documented. While the primary focus is the cabin, the lens placement behind the rearview mirror provides a peripheral view of the exterior environment. This coverage is essential for recording side-impact collisions or law enforcement interactions.

Is it legal to record passengers inside my vehicle in the US?

Video recording is legal in all 50 U.S. states, but audio recording laws vary by jurisdiction. Federal law requires one-party consent, but 14 states, including Illinois and Washington, require all-party consent for audio. In these jurisdictions, you must inform all occupants that conversation is being recorded. Placement is also regulated; for example, California law updates in 2026 restrict mounting to specific 5-inch or 7-inch squares on the windshield to prevent driver view obstruction.

How much power does a 3-channel dash cam consume?

A 3-channel dash cam typically consumes between 10W and 15W of power, requiring a 2A to 3A current at 5V. This consumption is significantly higher than single-channel units due to the processing load of three simultaneous streams and the activation of IR LEDs. For parking mode, a hardwire kit with a voltage-cutoff module is necessary to prevent the vehicle battery from dropping below 11.8V. This hardware ensures the dash cam with inside cabin view remains operational without depleting the car's starting power.

Can I view the interior cabin footage on my smartphone?

Most modern 3-channel systems include integrated 2.4GHz or 5GHz WiFi for smartphone connectivity. Users can download a dedicated manufacturer app to view live streams, adjust settings, and transfer recorded files directly to their mobile device. This wireless interface eliminates the need to remove the microSD card for routine footage review. High-speed 5GHz WiFi is preferred for 4K file transfers to reduce download times and improve the stability of the local connection between the camera and the phone.
